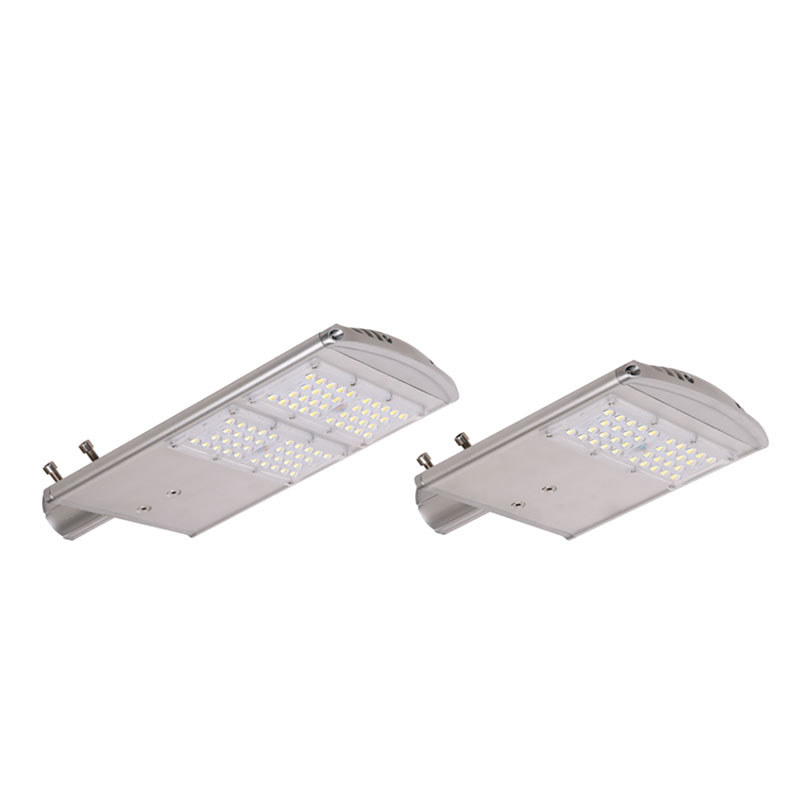

V5 LED Street Light

Product Description

The complexities of transportation infrastructure mean varying types of illumination are needed to ensure traffic flows smoothly, people feel safe, and cities save on costs. V5 LED Street light is a cost-effective and sustainable choice for cities today for it can reduce energy use by up to 70% with LED lighting technology, and remote management lowers maintenance costs because of its outstanding working ability against harsh environments such as strong wind, low temperature, and so on. Also, it reduce CO2 emissions for a greener, more sustainable city.

V5 LED Street light Features:
  • 1. Modular design, full power free combination, simple tool maintenance.
  • 2. Honeycomb type heat dissipation and full structure heat dissipation technology, high performance heat dissipation.
  • 3. The original high efficiency Lumileds LED chip, single light damage will not affect the whole light.
  • 4. The longitudinal uniformity 0.95, more comfortable and safety for driver.
  • 5. Intelligent constant current driver, over temperature, over voltage, over current protection, ensure product stability.
  • 6. 10KV lightning protection design, to protect the product from the induction and conduction of lightning damage.
  • 7. Support PWM dimming, timing dimming, support 0-10V dimming interface.
  • 8. Water proof of IP68, avoid water vapor or corrosive gas erosion of chips and circuit boards.
  • 9. AC90-305V, suitable for many countries.

Detailed parameters
Model V5-1 V5-2 V5-3
Power 30W 60W 40W-60W
Light Source 36pcs 72pcs 40-64pcs
Luminous
>3900 lm >7800 lm >4600 lm~>6600 lm
Chip Brand LUMILEDS/OSRAM
Driver Brand Donlim/ACHV
Input Voltage 100-277V~50/60Hz
CCT 3000K-5700K
Luminous
Efficiency
130 lm/w
CRI >Ra70
PF >0.95
Total harmonic
distortion
<15%
IP Rating
Ip67
Working
Temperature
-20℃~+50℃
Wind Proof
Index
12
Working time
>50000h
Pole interface
60mm

Product Details

Led Light Bulb Led Light Bulb

PRODUCT DISPLAY


A60 Led Light Bulb A60 Led Light Bulb

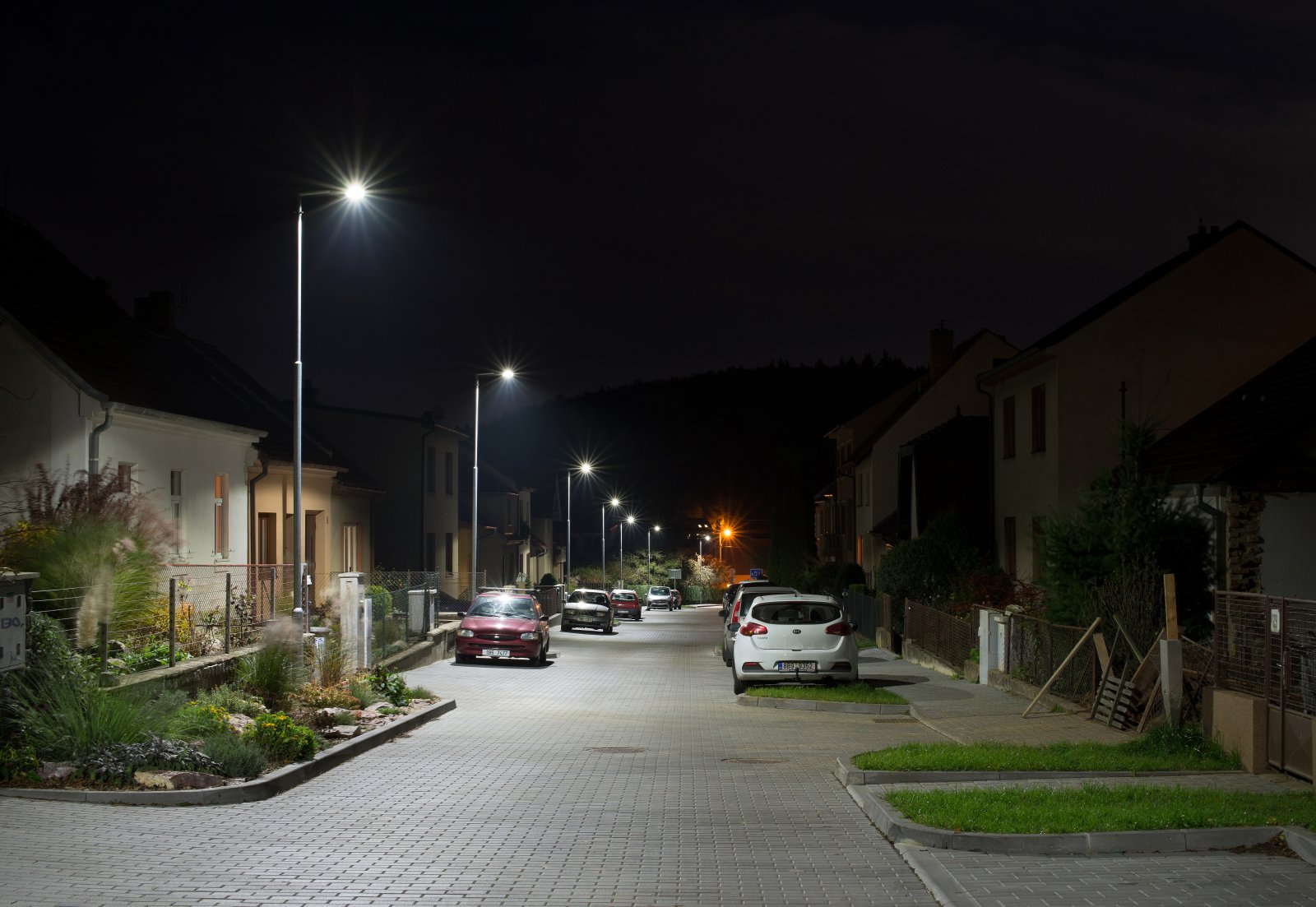

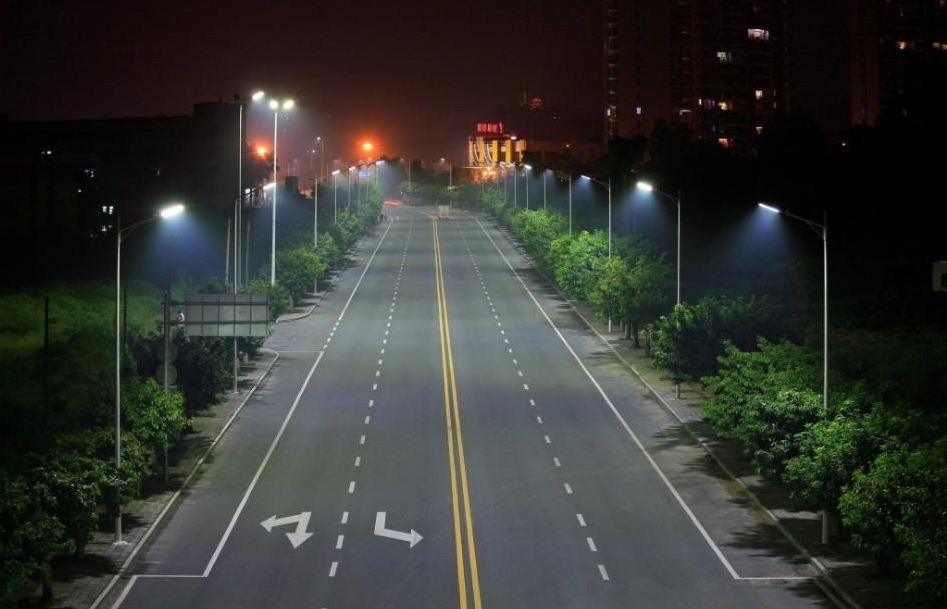

APPLICATION


Expressway, park, village, mine, wharf, factory.
