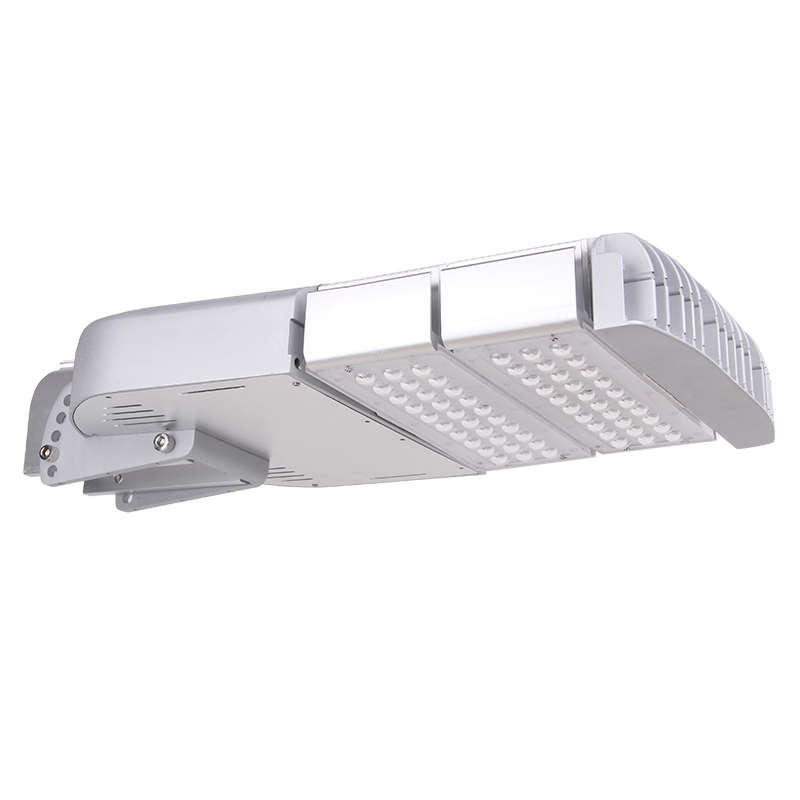

SM-SL01 Modular LED Street Light

Product Description

Product Advantages

1. All aluminum housing for the heat dissipating, greatly extending the life span of lighting source.

2. Protection Class IP65. Free of dust and water, suitable for outdoor.

3.  Processed by painting treatment and anodic oxidation, solid and corrosion resisting.

4.  Fin Type Aluminum Heat Radiator, Super heat dissipation performance.

5. Intergrated PC lens with different beam angles available.

6. Light Source: BridgeLux 45mil 3W LED, high brightness and luminous,120-130Lm/W

7. Different CCT for option: 3000K~6500K

8. Easy Installation, Lamp installation degree adjustable.

9. Rectangle Beam Angle, RA>75,IP65, Class II.

10. Power Supply: High quality TUV/GS/CE/CB/EMC/LVD certified MeanWell LED driver, η>92%, PF>0.95

11. Warranty: 5 Years Warranty

SL01 Modular LED Street Light
Brief Features:
Material: Fin Type Aluminum Heat Radiator, Super heat dissipation performance
24-in-1 intergrated PC lens with rectangle beam angle
Light Source: High brightness SMD3030 LEDs, 120-130Lm/W or Ultral-High lumen 150-160LM/W
Different CCT for option: 3000K~6500K
Easy Installation with Mounting Bracket.
Rectangle Beam Angle, RA>75, IP65 ,Class II,  η>90%, PF>0.95
Power Supply: High quality CE/RoHS certified LED driver
Warranty: 3-5 Years Warranty
Product Code SM-SL01-100W SM-SL01-150W SM-SL01-200W SM-SL01-250W SM-SL01-300W
Product Picture
Wattage 100W 150W 2000W 250W 300W
LED Q'TY 112pcs* Epistar SMD3030 LED 168pcs*Epistar SMD3030 LED 224pcs*Epistar SMD3030 LED 280pcs*Epistar SMD3030 LED 336pcs*Epistar SMD3030 LED
Lumen Efficency 150-160LM/W 150-160LM/W 150-160LM/W 150-160LM/W 150-160LM/W
Beam Angle 140° * 80°
CCT 3000K, 4000K, 5000K, 6000K, 6500K
CRI Ra>75
Driver CE approved High quality LED driver, Aluminum housing with glue sealed, IP65 waterproof
Input Voltage AC100-277V / 50-60Hz
Power Factor >0.95
Driver Efficiency >0.90
Working Temp -40℃~60℃
IP Rate IP65
Warranty 3-5 years warranty
Certificates CE ROHS
Materials Aluminum Heat Radiator + PC Lens
Net. Weight 6.1kgs 7.3kgs 8.4kgs 9.5kgs 10.6kgs
Dimension 497*280*105mm 581*280*105mm 665*280*105mm 749*280*105mm 833*280*105mm
Packing Size 540*340*180mm 615*340*180mm 710*340*180mm 795*340*180mm 875*340*180mm
20'GP/QTY 787pcs 690pcs 600pcs 534pcs 486pcs
40'GP/QTY 1695pcs 1488pcs 1290pcs 1150pcs 1046pcs

Remarks:

1. Price Terms: FOB Price, Shanghai or Ningbo Port.
2. Payment terms:T/T 30% deposit in advance, 70% balance payment before shipment.
3. Lead Time: 7 to 10 working days for sample order, 10 to 20 days for mass production. Actual lead time please check with us before order.
4. Warranty: 3 years, Lifespan: 25000-30000hours

Product Details

Broadly used for city highways, main roads, collector roads and other road lighting. Also widely applied in gas stations, parking lots, factories, schools, gardens, various residential areas, urban squares, courtyards, etc.
