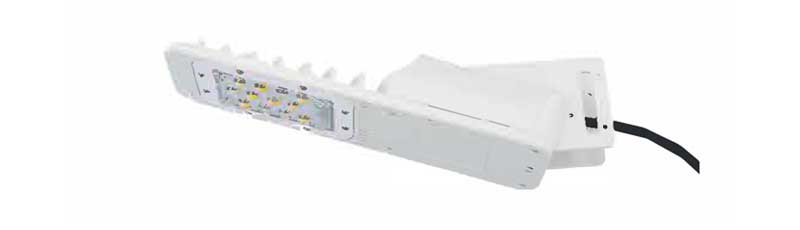

SM-T1K LED Street Light
Product Description
SM-T1K LED Street Light is better than normal LED lights for its large number light sources. Which can be different with specific model and enables different light intensity. Also, with the help of its advanced chip, the speed of it to emit light would be much better than other LED street lights in the market. And the color rendering index of SM-T1K LED Street Light is higher than many other lights, helping drivers to identify the different signs correctly and reduce the incidence of traffic accidents effectively. What’s more, SM-T1K LED Street Light is competitive for its outstanding working ability against harsh environments such as heavy rain, low temperature, and so on.
SM-T1K LED Street Light Features:
• Easy installation with hold hoop, elevation 20°.
• All metal structure, built-in driver.
• IP68 LED engine: highest waterproof rating.
• Photocontrol equipped for better energy-saving performance.
• Ergonomic lighting distribution to achieve uniform illuminating effect.
Detailed Parameters
|
Input Voltage |
Power Efficiency |
Power Factor |
Junction Temperature |
CRI |
Working Environment |
Storage Temperature |
|||
| AC100V-240V |
85%(20W) 88%(35W) |
0.95 | ＜80℃ | Ra≥70 |
-40℃~+50℃ 10%~90%RH |
-40℃~+50℃ | |||
| LED Life span |
Surge Protection |
CCT | LED Brand | Material | IP Rating | ||||
| >60000Hours | 15KV |
3000K 4000K 5000K 5700K |
Customized chips from world-leading supplier | Metal |
Optical set IP68, Whole Fixture IP67 |
||||
| Model | System Power |
LM/W (Ultra High) |
LM/W (High) |
Initial Lumens (Ultra High) |
Initial Lumens (High) |
Product Size (mm) |
Packaging dimension (mm) |
N.W.(Kg) | G.W.(Kg) |
| SM-T1K | 20 | 143 | 133 | 2860 | 2660 | 380*125*105 | 405*175*150 | 1.8 | 2.0 |
| 35 | 128 | 118 | 4480 | 4130 | 380*125*105 | 405*175*150 | 1.8 | 2.0 | |
Product Details
PRODUCT DISPLAY
