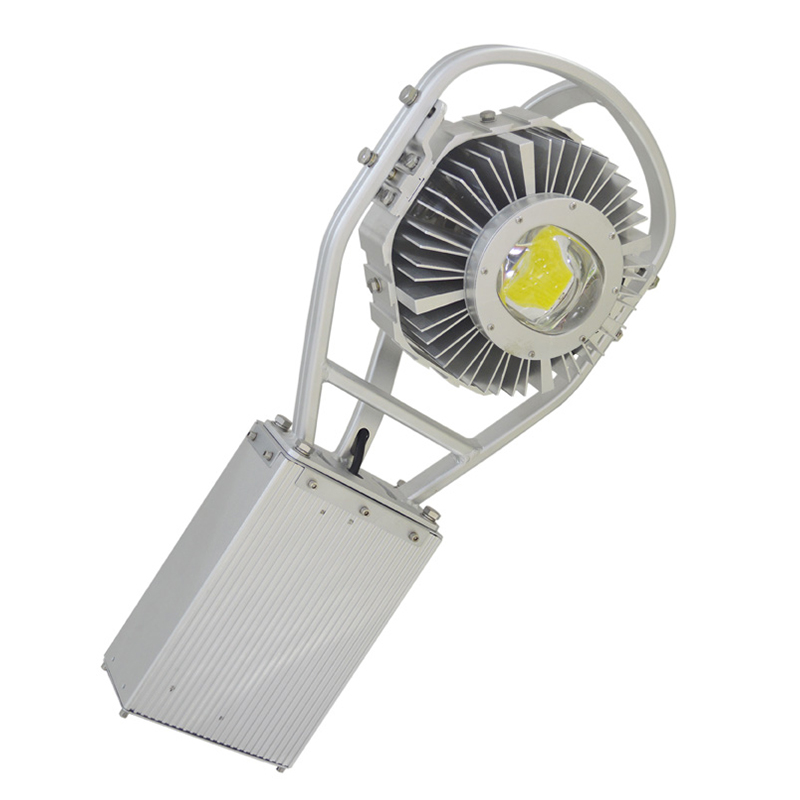

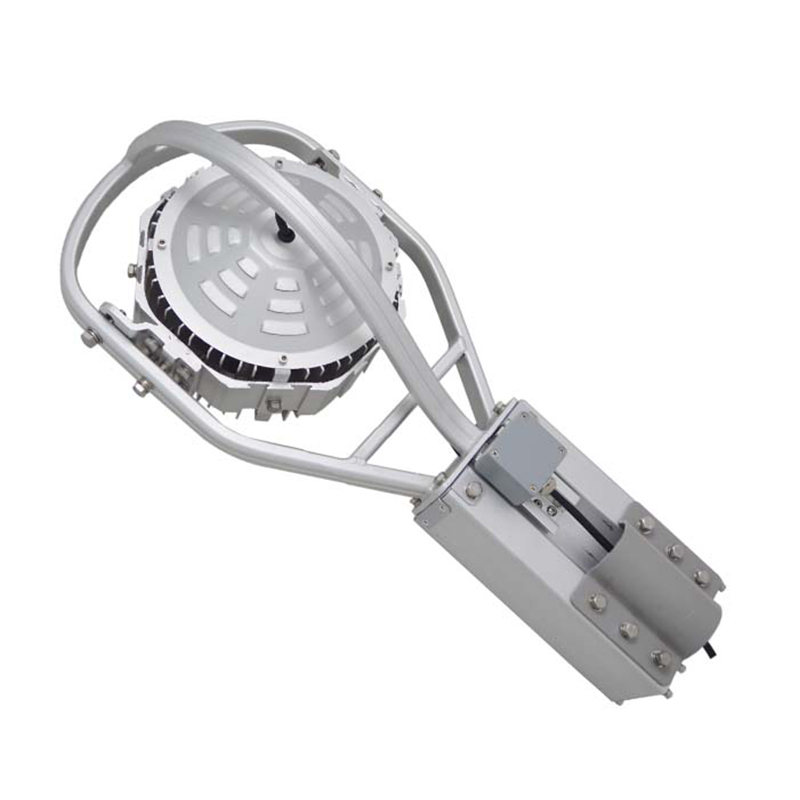

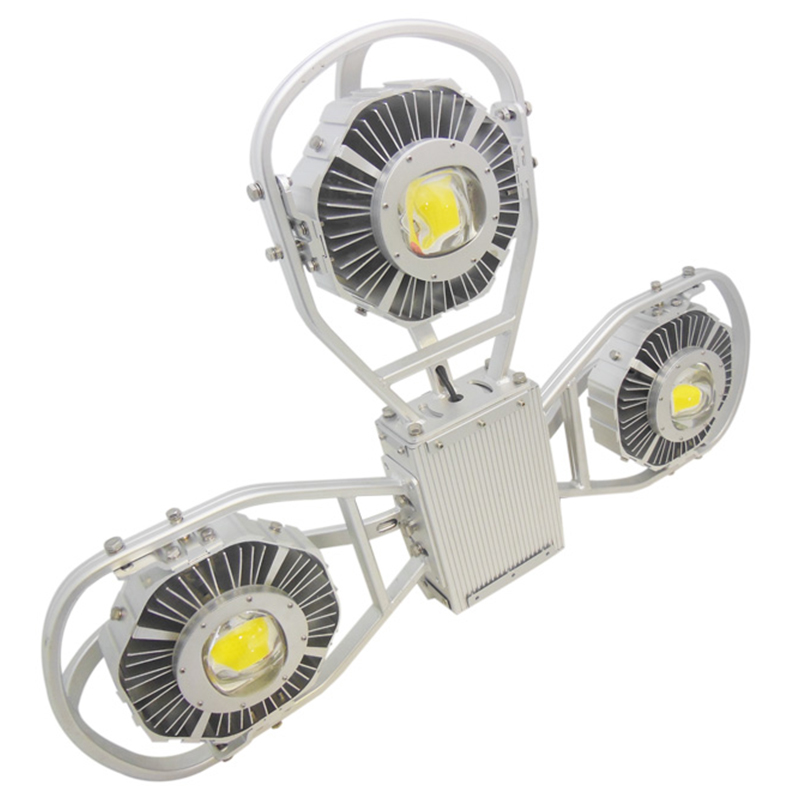

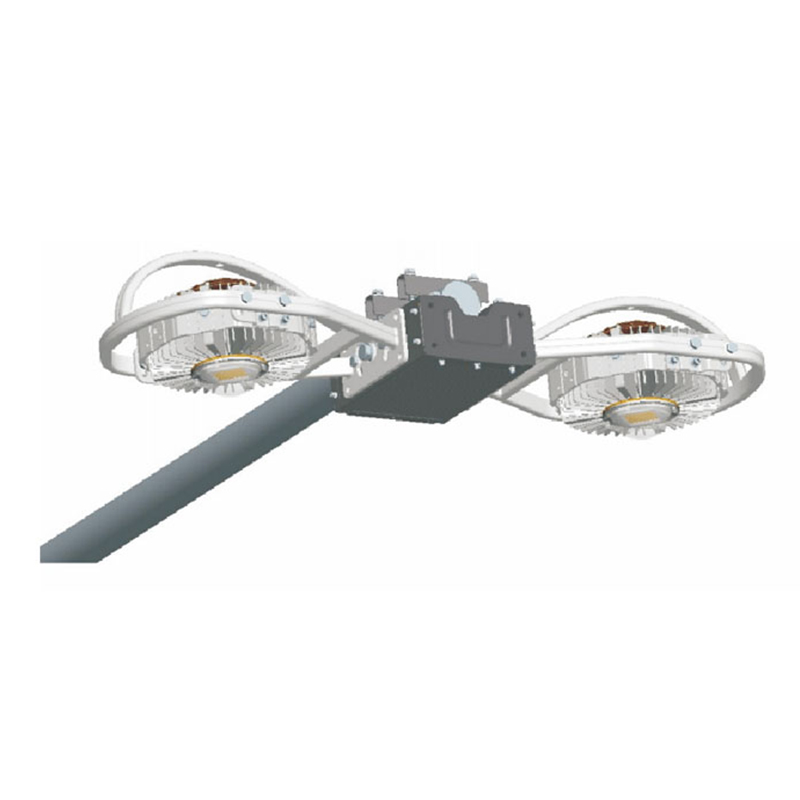

SM-RC880 LED Street Light
Product Description
1)High thermal conductivity, small luminance decrease, pure light color and no ghosting together with high brighten LED chips ensured our independently developed high-power LED light source popularly sold in many markets.
2)The fast heat dispersion of Aluminum radiator realized our production super long lifespan by constantly reducing the inner temperature.
3)Anodized surface stopped our production from being corroded and maintain its unique and grand appearance with IP65.
4)Green and Eco-friendly, strictly eradicated any pollution elements like lead or mercury which may do harm to our environment.
5)Excellent color rendering makes objects in it are very similar to natural light.Optional and Neutral color temperature made our production can fulfill the different requirement and improve users’ work efficiency by comforting their vision.
6)By abandon, traditional ballast design, constant current and width voltage range design thoroughly avoided electric-network noise pollution and unstable light beaming which may cause irritation and weary of users.
7)Optional color temperature, delicate surface burnishing along with easy installation, made our product your first choice to brighten or decorate the surroundings.
|
Input Voltage |
AC90V ～ 305V |
Frequency Range |
50Hz ～ 60Hz |
|
|
Total Harmonic Distortion |
≤12% |
Power Factor |
>0.96 |
|
|
Power Efficiency |
85% |
Working Voltage |
DC30～42V |
|
|
System Consumption |
200±5W |
LED Quantity |
1 PCS |
|
|
Led Luminous Efficiency |
100LM/W |
Led Initial Flux |
17000～ 19000lm |
|
|
Illumination Uniformity |
>0.5 |
Lamp's Efficiency |
>96% |
|
|
Color Temperature |
WW |
3000K ±10% |
Color Rendering Index |
Ra>70 |
|
PW |
4200K ±10% |

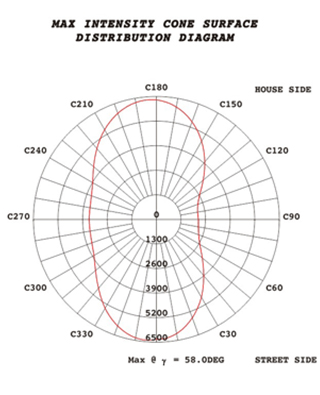

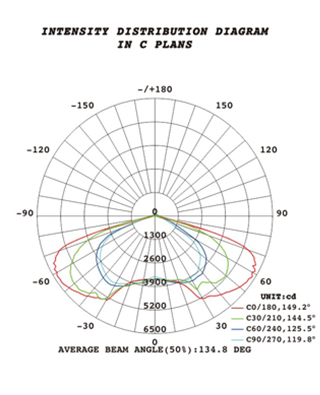

Light Distribution |
Batwing Light Spot |
|
|
CW |
6200K ±10% |
Light Design |
LED+Reflector secondary light distribution |
|
|
Junction Temperature |
≤40℃ |
IP Grade |
IP65 |
|
|
Working Life-span |
50000H |
Power line |
1.5mm2 Triple core wire |
|
|
Connect wire |
Brown |
L |
NW |
13.3 Kg |
|
Blue |
N |
(1Pcs) GW |
14.9 kg |
|
|
Yellow/Green |
G |
Size |
800*410*345mm |
|
|
The color of the lamp shell |
Grey |
Certificate |
CE，ROHS |
|
Product Details
Broadly used for city highways, main roads, collector roads and other road lighting. Also widely applied in gas stations, parking lots, factories, schools, gardens, various residential areas, urban squares, courtyards, etc.
