SM-IL LED Roadway Light

Product Description

  • Superb Design:
    In combination of years experience in street and parking lot lighting, the iL Series LED Roadway Light & parking light was born. This new series is the result of a multi-disciplinary design study and it applies the latest technologies developed by SM R&D. The product's reliability and performance are the pirority factors to be considered and they are verified and tested by our professional qualified and constantly updated personnel.

    We follow the R&D step by step: from optical to mechanical and electronic design. And Seming monitors the development of LED technology constantly investing in it. The iL series LED Roadway Light equipped with the latest universal LED modules, delivering superb performance of LED Lighting and high reliability.

    SM universal LED module provides excellent flexibility of LED lights. It can switch between different models, such as high bay light, flood light, gas station light, etc. This saves the logistic and production cost for customers.

    Reliable LED Lighting Technology:

    The special Reliable LED Lighting Technology provides significant advantages in terms of luminous efficiency, minimising losses refraction and reflection inside the optical system. This system ensures a lower density of dirt and maintaining the luminaire performance for a very long period.

    LED Source Protection:

    As the key to guarantee the total lifespan of the luminaire, the protection of the LED source is the core topic in the designing of Seming luminaires. The carefully selected Mitsubishi PC cover and waterproof rubber ring ensured total IP rating of the whole product. And it also protects the LED chips from external agents and impacts.

    0-90° Bracket Adjustment:
    The angles of the bracket of iL street light can be adjusted from 0 to 90 degrees to fit with different styles of poles.

0-90° adjustment available

Temperature Control:
The iL street light is designed with superb heat radiation technique. The heat and air can go through the whole luminaire via the gaps between the modules. This product also has a self-clean ability. When the rain came, the fixture will be washed and the dirt automatically goes out.


By the excellent heat radiation ability, the temperature rising of iL street light is only <26 °C. And the lamp can work in the environment from -40 °Cto 50 °C. If the environment is 40 °C, the maximum temperature of the lamp is 66 °C. But the Philips Luxeon T chips can afford 110 °C. This ensures the long lifespan and performance of the whole luminaire.

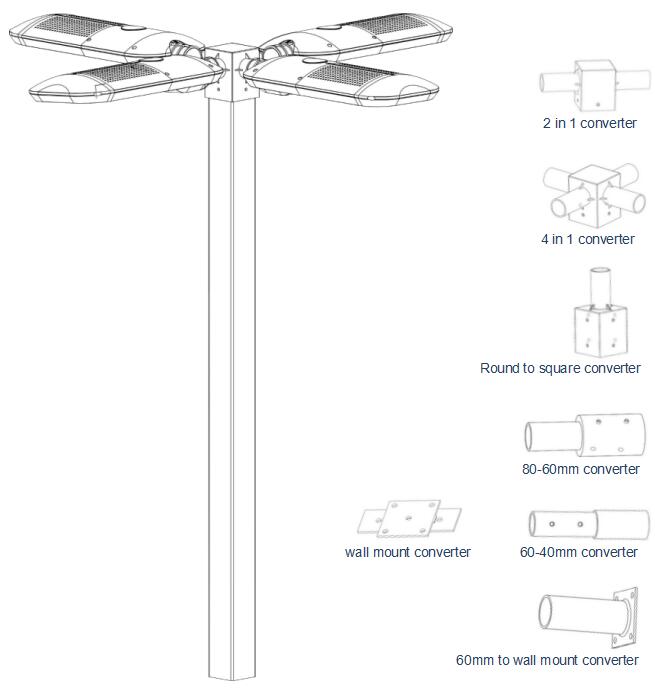

Diversified Installation Methods:
The iL street light is suitable for all the installation methods. Its standard bracket angle can be adjusted from 0-90 degrees. And it can be installed on the square-shape pole as well by simply adding an extra converter.


The standard bracket of iL street light is based on 60mm round spigot. There are many different bracket converters prepared for iL street light, such as round to square, 60-40mm, 60-80mm, etc.
Multiple Light Distribution Options:
Street light & parking light should fit with a wide range of applications. Such as highway, expressway, road, avenue, walking path or parking lot. Thus, SM provides the different lens for the iL Series street light to achieve different light distributions.


Seming follows the North American IESNA standard in providing the optional lens with Type II and Type III. The Type II lens is suitable for the highway with 2 lanes, Type III A is for 3 lanes and Type III B is for the even wider road. Seming selects the most suitable lens for its customer according to the detailed parameters project by project.
  • Type II: 60*150 degrees

  • Type III A: 70*150 degrees

  • Type III B: 80*150 degrees




90*100 degrees lens for parking Lot


Type II Lens:
  • The Type II lens of iL series street light has the beam angle of 60*150 degrees. In the IESNA standard, the Type II lens normally use in the entrance of wide sidewalk, bicycle path, street or any other long but narrow areas. For this lens, the street light needs to be installed on the side of the road instead of the middle. The width of the light distribution is about 1.75 times than the installation height of the street light.



Type III-A Lens:
  • The Type III A lens of iL series street light has beam angle of 70*150 degrees. In the IESNA standard, the Type III lens normally used in the highway or expressway. The street light is also installed on the side of the road. And the light distribution is 2.75 times than the installtion height of the street light.
    We designed 2 kinds of Type III lens: Type III A and Type III B. The Type III A is mainly for the street with 3 lanes.



Type III-B Lens:
  • The Type III A lens of iL series street light has beam angle of 70*150 degrees. In the IESNA standard, the Type III lens normally used in the highway or expressway. The street light is also installed on the side of the road. And the light distribution is 2.75 times than the installtion height of the street light.
    We designed 2 kinds of Type III lens: Type III A and Type III B. The Type III A is mainly for the street with 3 lanes.



Solar Street Light System:
  • SM-40WiL DC version

    SM-80WiL DC version

    SM-120WiL DC version


Seming provides a comprehensive solut the on of LED solar street lighting system. The 40W, 80W and 120W models of iL series street light is suitable for this application.
A standard solar lighting system provided by Seming includes a DC version street light (40W, 80W or 120W), a solar panel, controller and the lead-acid battery. The 40W is based on 12VDC and 24VDC, the 80W and 120W models are based on 24VDC.
Intelligence Street Lighting System:

Seming provides a total solution for intelligence street lighting system, like DALI system or Zigbee system. The whole system is drived by the GPRS or CDMA wireless netweork. For example, intelligence street lighting system of 3 roads will consist by a centralized controller on each road and the single light controller on each pole. Each single street light is a control node in the system. And the whole system is monitored and controlled by a general monitoring center with the specialized software.

Product Details

SM-40WiL
LED Street & Parking Light, 80-100W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-40WiL
  • Nominal Wattage
  • 40W
  • Nominal Voltage
  • 90-305/277-480VAC, 50/60Hz
    12/24VDC
  • Maximum Current
  • AC 0.45A (max)
    DC 3.34A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >90%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    +Lumen tolerance +/- 5%
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° /
    90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 495*300*107mm
    19.5*11.8*4.2 inches
  • Net Weight
  • 5.5kg
  • Carton Dimension
  • 570*370*190mm
  • Gross Weight
  • 6.7kg
SM-80WiL
LED Street & Parking Light, 160-200W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-80WiL
  • Nominal Wattage
  • 80W
  • Nominal Voltage
  • 90-305/277-480VAC, 50/60Hz
    24VDC
  • Maximum Current
  • AC 0.9A (max)
    DC 0.3A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >92%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    8,000-8,800lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° /
    90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 576*300*107mm
    22.7*11.8*4.2 inches
  • Net Weight
  • 7.5kg
  • Carton Dimension
  • 650*370*190mm
  • Gross Weight
  • 8.3kg
SM-120WiL
LED Street & Parking Light, 240-280W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-120WiL
  • Nominal Wattage
  • 120W
  • Nominal Voltage
  • 90-305/277-480VAC, 50/60Hz
    24VDC
  • Maximum Current
  • AC 1.35A (max)
    DC 5A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >93%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    12,000-13,200lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° / 90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 657*300*107mm
    25.9*11.8*4.2 inches
  • Net Weight
  • 8.4kg
  • Carton Dimension
  • 730*370*190mm
  • Gross Weight
  • 9.5kg
SM-160WiL
LED Street & Parking Light, 320-400W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-160WiL
  • Nominal Wattage
  • 160W
  • Nominal Voltage
  • 90-305VAC, 50/60Hz
    277-480VAC, 50/60Hz
  • Maximum Current
  • AC 1.80A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >93%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    16,000-17,600lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° / 90*100°/ 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 738*300*107mm
    29.1*11.8*4.2 inches
  • Net Weight
  • 9.7kg
  • Carton Dimension
  • 810*370*190mm
  • Gross Weight
  • 10.6kg
SM-200WiL
LED Street & Parking Light, 400-500W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-200WiL
  • Nominal Wattage
  • 200W
  • Nominal Voltage
  • 90-305VAC, 50/60Hz
    277-480VAC, 50/60Hz
  • Maximum Current
  • AC 2.25A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >93%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    20,000-22,000lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° / 90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 819*300*107mm
    32.3*11.8*4.2 inches
  • Net Weight
  • 10.8kg
  • Carton Dimension
  • 900*370*190mm
  • Gross Weight
  • 12kg
SM-240WiL
LED Street & Parking Light, 480-600W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-240WiL
  • Nominal Wattage
  • 240W
  • Nominal Voltage
  • 90-305VAC, 50/60Hz
    277-480VAC, 50/60Hz
  • Maximum Current
  • AC 2.66A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >94%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    24,000-26,400lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° / 90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 900*300*107mm
    35.4*11.8*4.2 inches
  • Net Weight
  • 11.6kg
  • Carton Dimension
  • 970*370*190mm
  • Gross Weight
  • 13.1kg
SM-280WiL
LED Street & Parking Light, 800-1000W HID Replacement

Black / white / silver / bronze color housing optional
1-10V / PWM / Resistance dimming optional


Optional converters for different applications

Electrical Specifications

  • Model No.
  • SM-280WiL
  • Nominal Wattage
  • 280W
  • Nominal Voltage
  • 90-305VAC, 50/60Hz
    277-480VAC, 50/60Hz
  • Maximum Current
  • AC 3.10A (max)
  • Power Factor (PF)
  • >0.95
  • Driver Efficiency
  • >94%

Photometric Specifications

  • Luminous Flux
  • +Lumen tolerance +/- 5%
    28,000-30,800lm
  • CRI
  • Ra>75
  • CCT
  • 3000-6500K
  • Optional Beam Angle
  • 60*150° / 70*150° / 80*150° / 90*100° / 60° / 120°

Mechanical Specifications

  • IP&IK Rating
  • IP66 & IK10
  • Lifetime
  • 62000 hours - L70, @25°C
  • Heat Radiator
  • Anodized Aluminum
  • Lens
  • PC
  • Fixture Dimension
  • 981*300*107mm
    38.6*11.8*4.2 inches
  • Net Weight
  • 13.5kg
  • Carton Dimension
  • 1050*370*190mm
  • Gross Weight
  • 15.4kg
