SM-06 LED Street light is better than normal LED lights for its large number light sources. Which can be different with specific model and enables different light intensity. Also, with the help of its advanced chip, the speed of it to emit light would be much better than other LED street lights in the market. And the color rendering index of SM-05 LED Street light is higher than many other lights, helping drivers to identify the different signs correctly and reduce the incidence of traffic accidents effectively. What’s more, SM-05 LED Street light is competitive for its outstanding ability against harsh working environments such as heavy rain, low temperature, and so on.
Benefits of LED Street light:
• The original high efficiency Lumileds LED chip, single light damage will not affect the whole light.
• The longitudinal uniformity 0.8, more comfortable and safety for driver.
• Water proof of IP65, avoid water vapor or corrosive gas erosion of chips and circuit boards.
• AC85-305V, suitable for many countries.
• Competitive for its outstanding working ability against harsh environments such as heavy rain, low temperature, and so on.
Model | SM-06 LED |
Size | 30W :480*355*155mm(L*W*H), 8.7KG |
60W :560*355*155 mm(L*W*H) 9.7KG | |
90W :640*355*155 mm(L*W*H) 10.7KG | |
120W :720*355*155 mm(L*W*H) 11.7KG | |
150W :800*355*155 mm(L*W*H) 12.7KG | |
180W :880*355*155mm(L*W*H) 13.7KG | |
210W :960*355*155mm(L*W*H) 14.7KG | |
240W :1040*355*155mm(L*W*H) 15.7KG | |
270W :1120*355*155mm(L*W*H) 16.7KG | |
300W :1200*355*155mm(L*W*H) 17.7KG | |
Max Power | 30W/60W/90W/120W/150W/180W/210W/240W/270W/300W |
Input Voltage | AC90V-305V, 50hz-60hz, DC12/24V |
Driver Brand | PHILIP /MEANWELL/ZHIHE and others |
Chip Brand | PHILIPS/BRIDGELUX/CREE and others |
Light Luminous Efficiency | >110LM/W |
Uniformity | >0.8 |
Average illumination | 6m>25LUX, 8m>20LUX |
LED Luminous Efficiency | >90% |
Color Temperature | 3000-6500K |
CRI | Ra>75 |
Power Efficiency | >90% |
Power Factor | >0.95 |
Working Environment | ﹣60℃-70℃ |
Material | die-casting aluminum |
IP Rating | IP65 |
Working Life | >50000H |
Warranty | 3-5 Years |

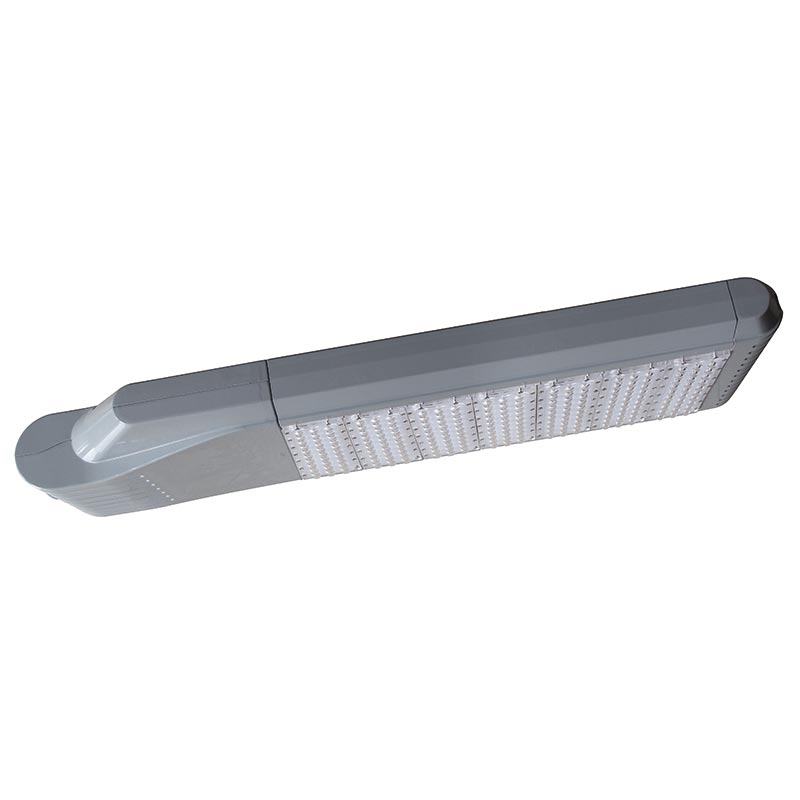

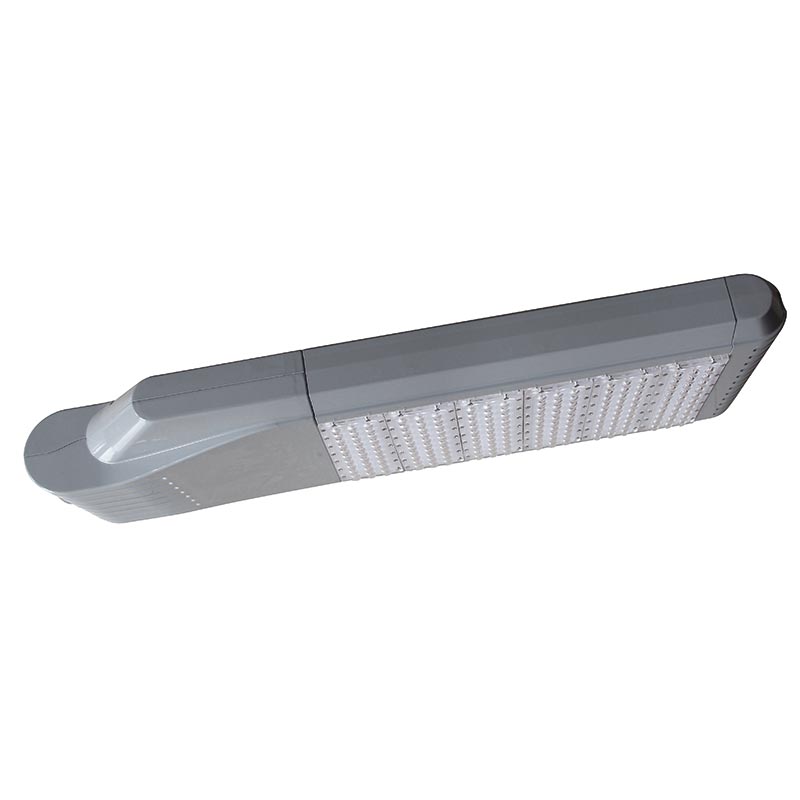

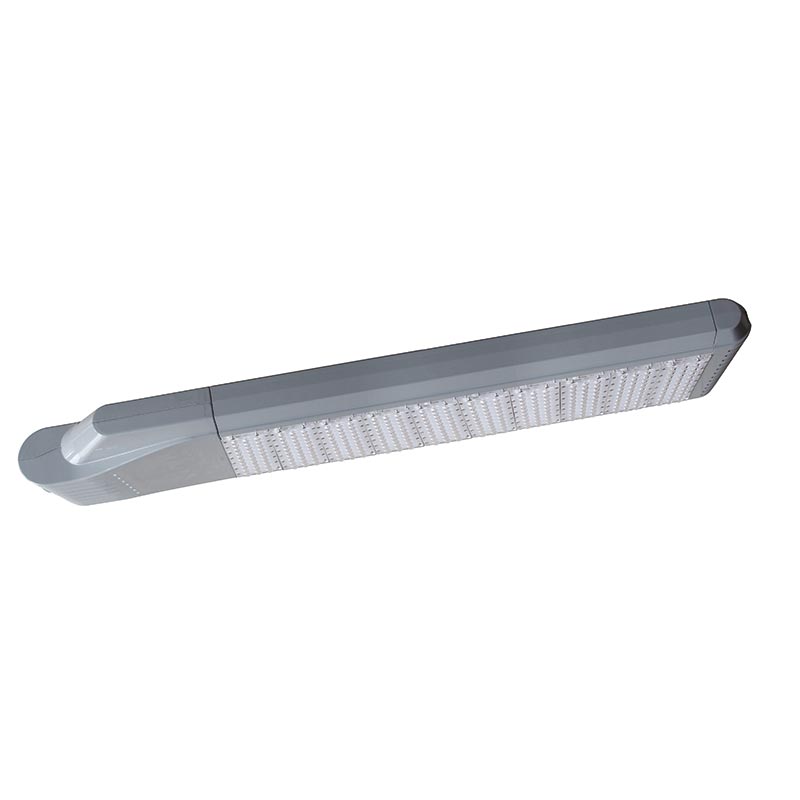

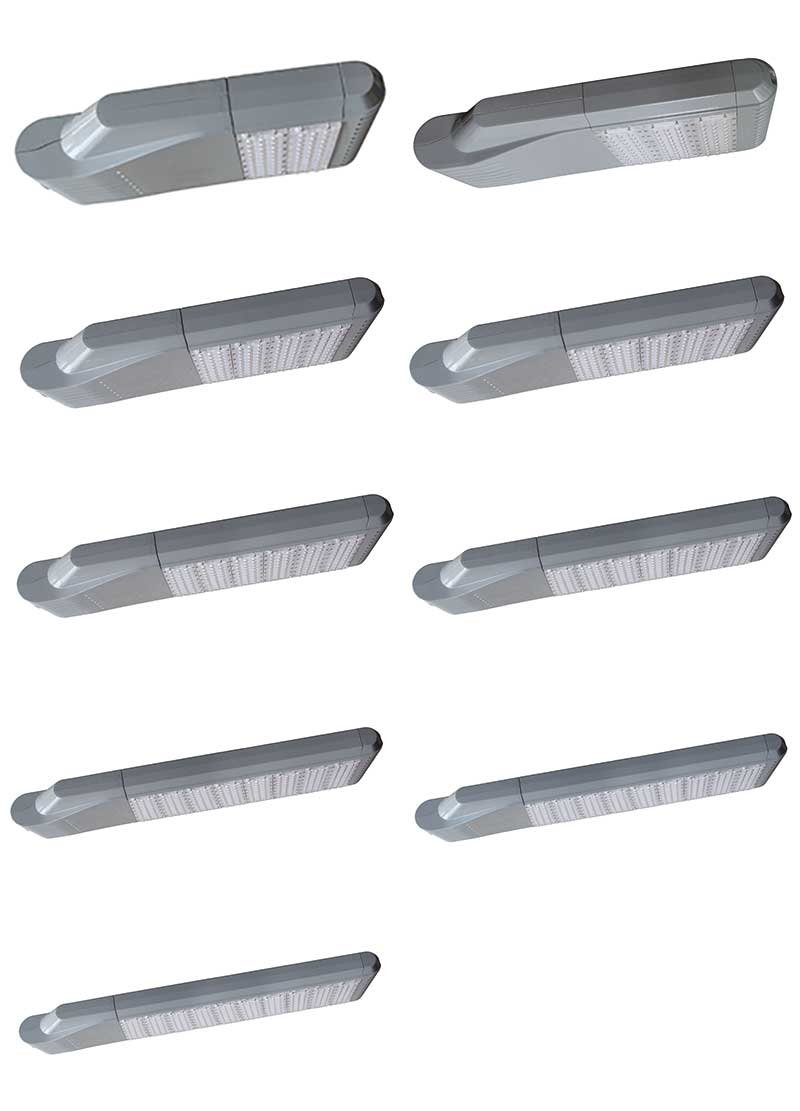

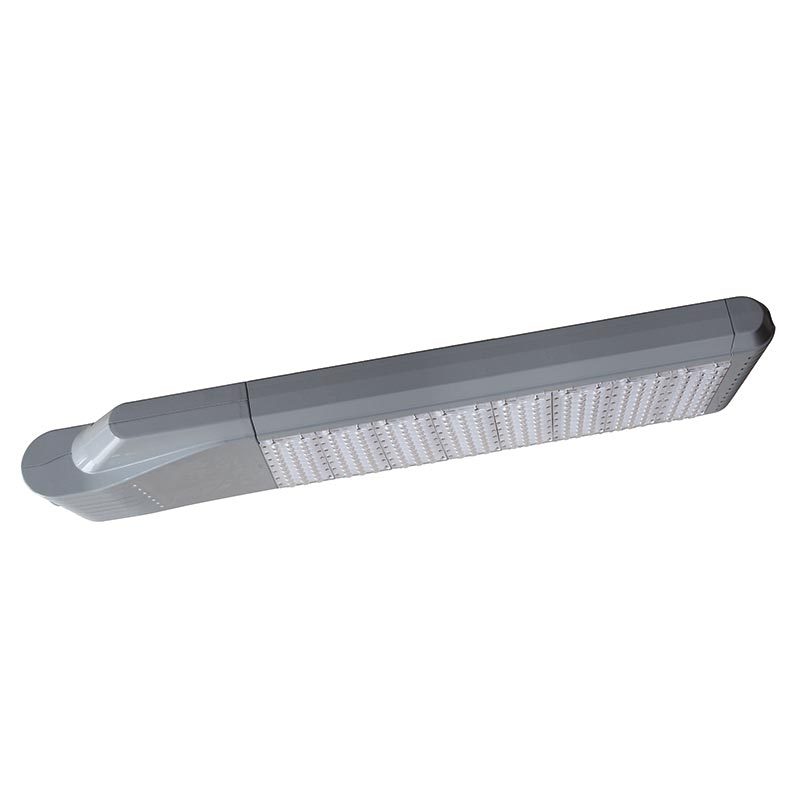

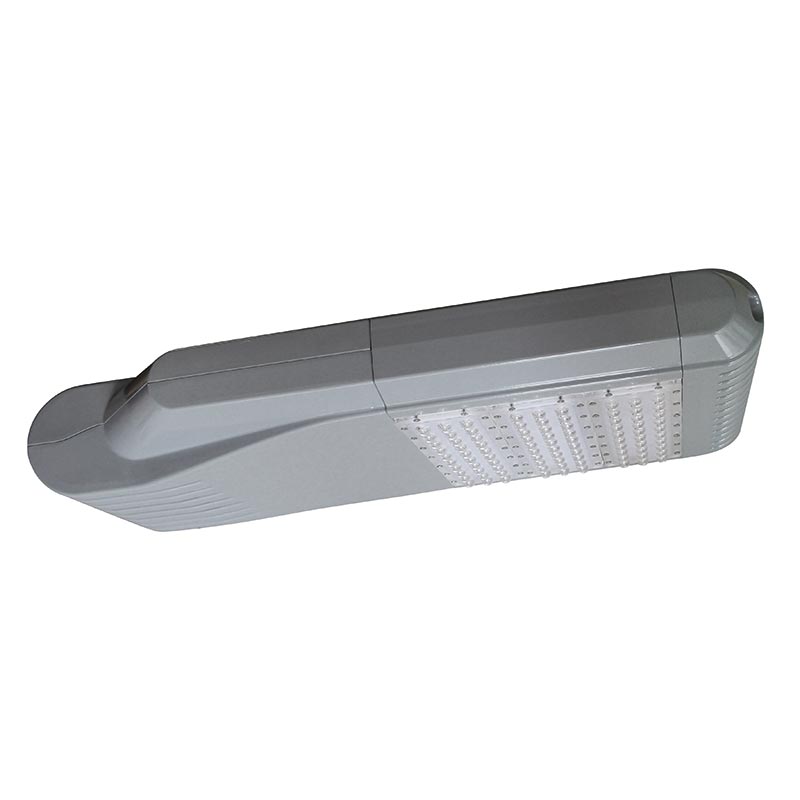

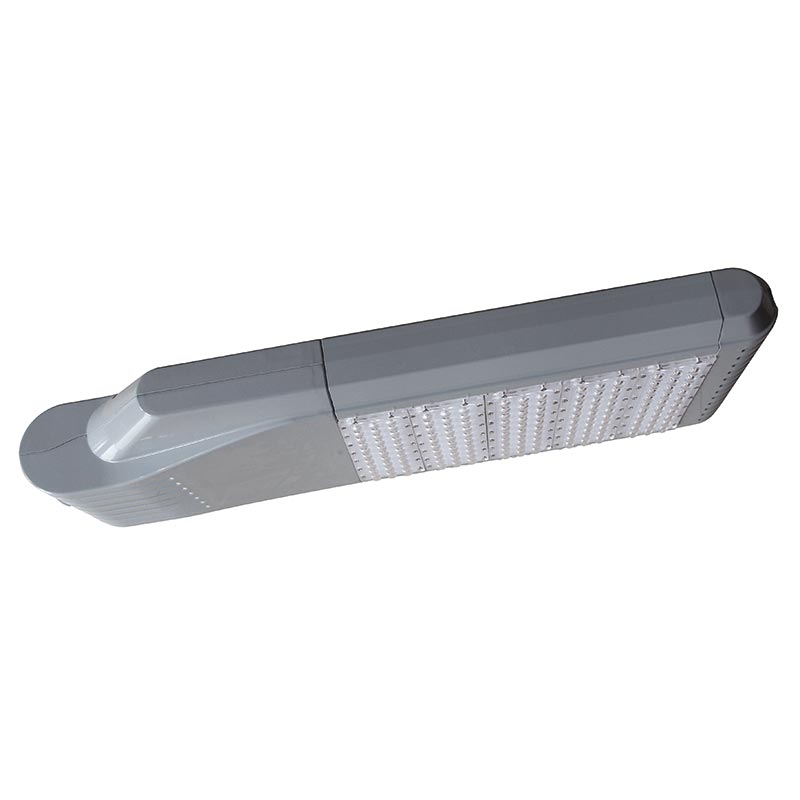

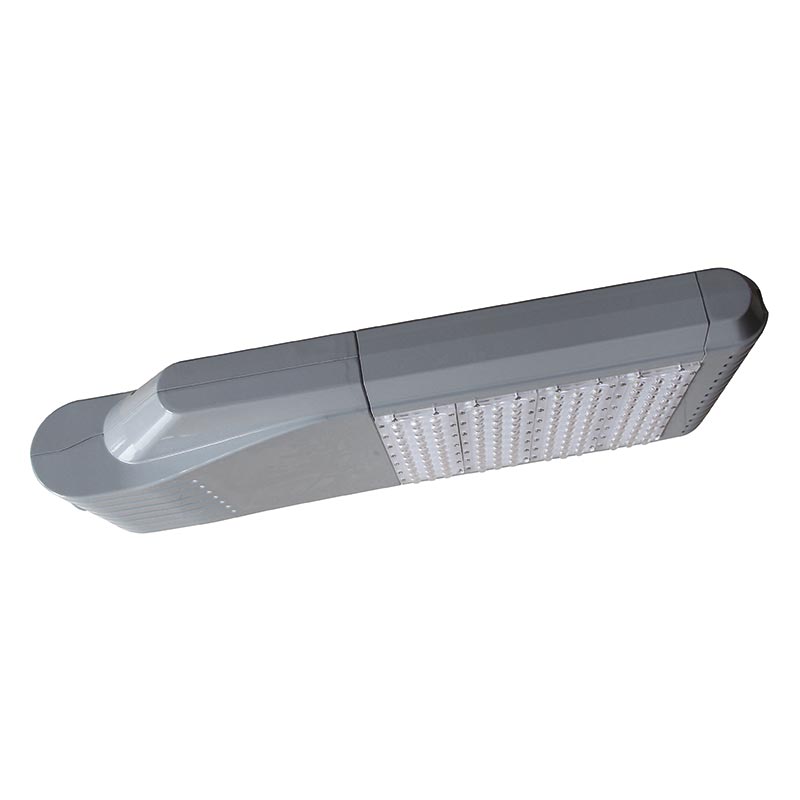

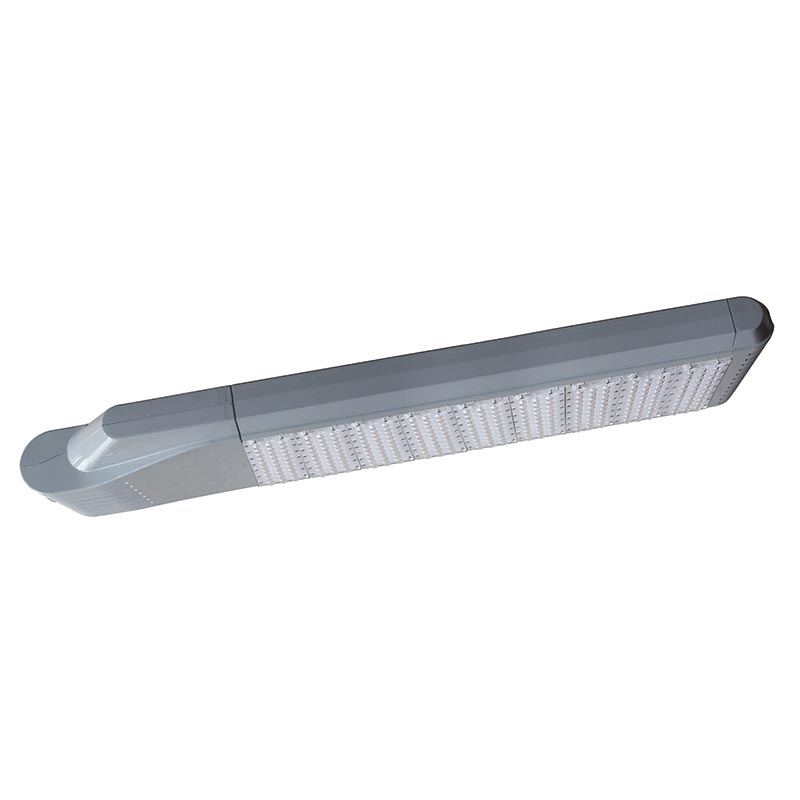

PRODUCT DISPLAY

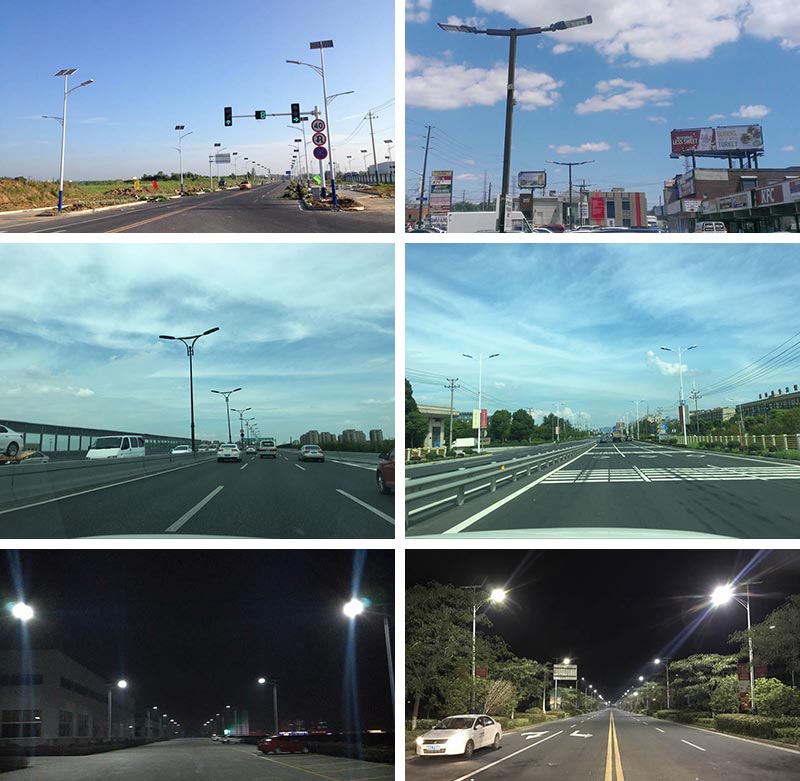

APPLICATION
