A5 LED Street Light

Product Description

A5 LED Street light is a new product in LED street lighting. As it has 18-90pcs LED light sources, luminous of it is really high to 325001m with a little power, which does one of the decisive factors performed as street lighting. Also, the color rendering index of A5 LED Street light is higher than many other lights, helping drivers to identify the different signs correctly and reduce the incidence of traffic accidents effectively. What’s more, A5 LED Street light is competitive to other LED lights for its outstanding working ability against harsh environments such as strong wind, low temperature, and so on.

A5 LED Street Light Features:
  • 1. Modular design, full power free combination, simple tool maintenance.
  • 2. Honeycomb type heat dissipation and full structure heat dissipation technology, high performance heat dissipation.
  • 3. The original high efficiency Lumileds LED chip, single light damage will not affect the whole light.
  • 4. The longitudinal uniformity 0.95, more comfortable and safety for driver.
  • 5. Intelligent constant current driver, over temperature, over voltage, over current protection, ensure product stability.
  • 6. 10KV lightning protection design, to protect the product from the induction and conduction of lightning damage.
  • 7. Support PWM dimming, timing dimming, support 0-10V dimming interface.
  • 8. Water proof of IP68, avoid water vapor or corrosive gas erosion of chips and circuit boards.
  • 9. AC90-305V, suitable for many countries.

Detailed parameters
Model A5-1 A5-2 A5-3 A5-4 A5-5
Power 50W 100W 150W 200W 250W
Light Source 18pcs 36pcs 54pcs 72 pcs 90 pcs
Luminous
>6500 lm >13000 lm >19500 lm >26000 lm >32500 lm
Chip Brand CREE
Driver Brand MOSO/PHILIPS/INVENTRONICS/MEAN WELL
Input Voltage 100-277V~50/60Hz
CCT 3000K-5700K
Luminous
Efficiency
130 lm/w
CRI >Ra70
PF >0.95
Total harmonic
distortion
<15%
IP Rating
Ip67
Working
Temperature
-20℃~+50℃
Wind Proof
Index
12
Working time
>50000h
Pole interface
60mm

Product Details

Led Light Bulb Led Light Bulb

PRODUCT DISPLAY


A60 Led Light Bulb A60 Led Light Bulb A60 Led Light Bulb

APPLICATION

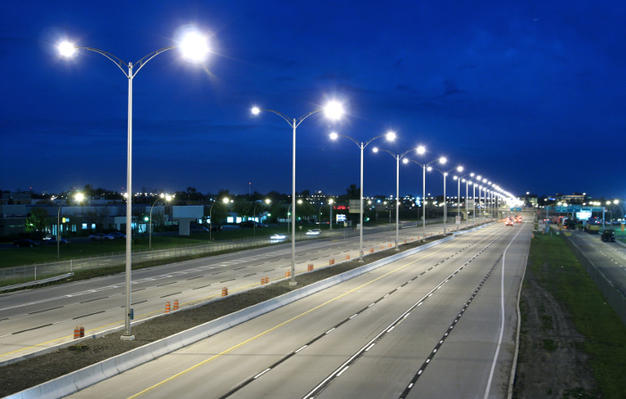

Expressway, main road and branch road, park.
