SM-FL2H Outdoor LED Flood Lights are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. The white beam of light produced by it is very much similar to daylight. When SM-FL2H LED Flood Lights be used in stadiums, it makes the spectators feel as though it is day time. Also, SM-FL2H Outdoor LED Flood Lights are impervious to temperature fluctuations and environmental conditions. Unlike some other lights, LEDs remain stable and functional even in freezing conditions. This makes them all the more ideal for cold warehouses and storage areas.
Being free of Mercury, Lead and Carbon Emissions, SM-FL2H Outdoor LED Flood Lights do not give out any harmful emissions such as carbon. As a result, they are much friendlier to the environment and also to the health of people nearby. What’s more, SM-FL2H LED Flood Lights do not emanate heat and conserve the maximum amount of electricity, which also leads to longevity and safety.
For these advantages of SM-FL2H Outdoor LED Flood Lights these lights are ideal for use in cold storage warehouses, or used as a stage lighting instrument in live performances such as concerts and plays. In the top tiers of many professional sports, it is a requirement for stadiums to have floodlights to allow games to be scheduled outside daylight hours.
Features of Outdoor LED Flood Lights:
• Modular pluggable technology, easy tool onsite maintenance.
• Honeycomb and whole structure cooling technology, high efficient heat dissipation.
• Double-coupling IP68 protection, highest waterproof level.
• Intelligent constant current driving technology, long life span.
• Ergonomic light distribution to achieve uniform illuminating effect.
• Free modular serialization and full power range solutions.
Input Voltage |
Power Efficiency |
Power Factor |
Junction Temperature |
CRI |
Working Environment |
Storage Temperature |
|||
AC100V-277V | 91% | 0.95 | <80℃ | Ra≥70 |
-40℃~+50℃ 10%~90%RH |
-40℃~+50℃ | |||
LED Life span |
Surge Protection |
CCT | LED Brand | Material | IP Rating | ||||
>60000Hours | 10KV/5KA |
3000K 4000K 5000K 5700K |
Lumileds | Metal |
LED Module IP68, Power supply IP67 |
||||
Model | System Power |
LM/W (Ultra High) |
LM/W (High) |
Initial Lumens (Ultra High) |
Initial Lumens (High) |
Product Size (mm) |
Packaging dimension (mm) |
N.W.(Kg) | G.W.(Kg) |
FL2H-1 | 40 | 155 | 115 | 6200 | 4600 | 300*105*290 | 390*165*190 | 2.4 | 2.8 |
50 | 150 | 110 | 7500 | 5500 | 300*105*290 | 390*165*190 | 2.4 | 2.8 | |
60 | 145 | 105 | 8700 | 6300 | 300*105*290 | 390*165*190 | 2.4 | 2.8 | |
FL2H-2 | 80 | 160 | 120 | 12800 |
9600 |
300*190*290 | 390*245*190 | 3.8 | 4.3 |
100 | 155 | 115 | 15500 | 11500 | 300*190*290 | 390*245*190 | 3.8 | 4.3 | |
120 | 150 | 110 | 18000 | 13200 | 300*190*290 | 390*245*190 | 3.8 | 4.3 | |
FL2H-3 | 120 | 160 | 120 | 19200 |
14400 |
300*270*290 | 390*325*190 | 5.2 | 5.8 |
150 | 155 | 115 | 23250 | 17250 | 300*270*290 | 390*325*190 | 5.2 | 5.8 | |
180 | 150 | 110 | 27000 | 19800 | 300*270*290 | 390*325*190 | 5.2 | 5.8 | |
FL2H-4 | 160 | 160 | 120 | 25600 | 19200 | 300*350*290 | 390*405*190 | 6.2 | 6.9 |
200 | 155 | 115 | 31000 | 23000 | 300*350*290 | 390*405*190 | 6.2 | 6.9 | |
240 | 150 | 110 | 36000 | 26400 | 300*350*290 | 390*405*190 | 6.2 | 6.9 | |
FL2H-5 | 200 | 160 | 120 | 32000 | 24000 | 300*430*355 | 425*505*225 | 11.1 | 12.5 |
250 | 155 | 115 | 38750 | 28750 | 300*430*355 | 425*505*225 | 11.1 | 12.5 | |
300 | 150 | 110 | 45000 | 33000 | 300*430*355 | 425*505*225 | 11.1 | 12.5 | |
FL2H-6 | 240 | 160 | 120 | 38400 | 28800 | 300*480*355 | 425*575*225 | 12.4 | 13.9 |
300 | 155 | 115 | 46500 | 34500 | 300*480*355 | 425*575*225 | 12.4 | 13.9 | |
360 | 150 | 110 | 54000 | 39600 | 300*480*355 | 425*575*225 | 12.4 | 13.9 | |
FL2H-7 | 280 | 160 | 120 | 44800 | 33600 | 300*560*355 | 425*655*230 | 14.1 | 15.7 |
350 | 155 | 115 | 54250 | 40250 | 300*560*355 | 425*655*230 | 14.1 | 15.7 | |
420 | 150 | 110 | 63000 | 46200 | 300*560*355 | 425*655*230 | 14.1 | 15.7 | |
FL2H-8 | 320 | 160 | 120 | 51200 | 38400 | 300*640*355 | 425*735*230 | 15.4 | 17.2 |
400 | 155 | 115 | 62000 | 46000 | 300*640*355 | 425*735*230 | 15.4 | 17.2 | |
480 | 150 | 110 | 72000 | 52800 | 300*640*355 | 425*735*230 | 15.4 | 17.2 |
PRODUCT DISPLAY

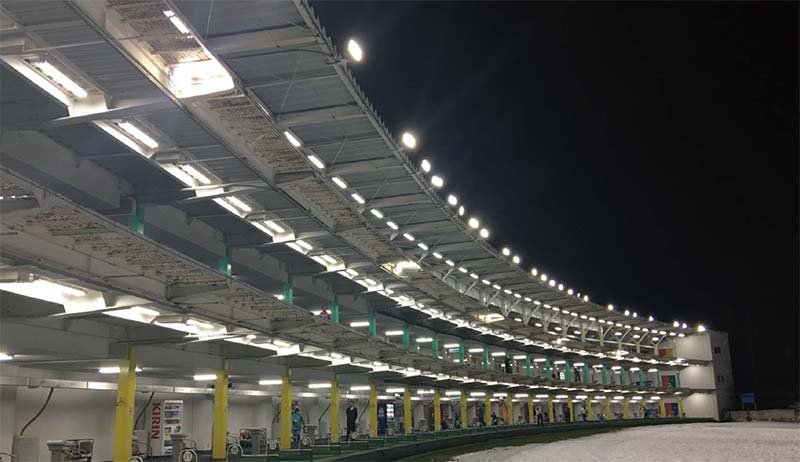

APPLICATION
