Light Source:LED | Item Type:Flood Lights | LED Light Source:SMD3030 |
Input Voltage(V):AC85-265V | Lamp Power(W):200 | Lamp Luminous Flux(lm):20000 |
Lamp Luminous Efficiency(lm/w):100 | CRI (Ra>):80 | Color Temperature(CCT):Pure White |
Beam Angle(°):120 Degree | Working Temperature(℃):-20 - 50 | Working Lifetime(Hour):50000 |
Lamp Body Material:Aluminum | IP Rating:IP65 | Certification:CE, EMC, LVD, RoHS |
Place of Origin:Guangdong, China (Mainland) | Brand Name:DONTA | Model Number:M2-200W |
Product name:led flood light | Power:200W | Material:Aluminium Alloy + PC |
Power Factor:PF>0.95 | Efficiency:>0.9 | Light Transmission Rate:90% |
LED Beam Angle:90°/120° | Warranty:3-5 Years | Application:Tunnel |
NO. | 1 module | 2 module | 3 module | 4 module |
Power | 50W | 100W | 150W | 200W |
Light source | SMD3030 | |||
LED | 48PCS | 48PCS*2 | 48PCS*3 | 48PCS*4 |
LED Driver | Donta/Meanwell Driver | |||
Structure | Detachable modular | |||
Luminous efficiency | 100lm/w | |||
CRI | Ra ≥ 80 | |||
Color Temperature | 2700-3000K 4000-4500K 5500-6000K | |||
Input Voltage | AC85-265V | |||
Surge Protection | 3KV | |||
Power Factor | >0.95 | |||
Working temperature | -20℃ ~ +50 ℃ | |||
IP Rating | IP65 | |||
Certificate | CE, ROHS,EMC | |||
Warranty | 3-5years | |||
Product size(mm) | 310*95*130 | 310*180*130 | 310*272*130 | 310*370*130 |
Packaging size(mm) | 320*215*220 | 340*280*165 | 340*320*165 | 390*345*165 |
Packing Qty | 2PCS/Carton | 1PCS/Carton | ||
Installation Type |
Hook hanging & Chain Hanging & Mount suface Hang & Pole Hanging |
|||
Features |
1.Patent design 2.Detachable modular design, easy to maintain and repaire. |
|||
Application | Tunnel,Highway,Gas Station,Factory, Warehouse,Workshop,Square,Parking Lot, Supermarket,advertising lighting, Garden,Public place etc. |

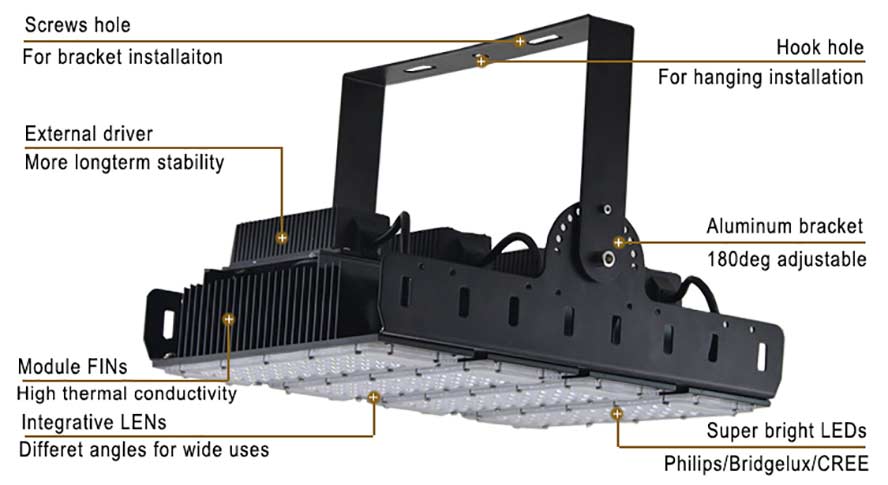

PRODUCT DISPLAY
